品質等級 DIN 10

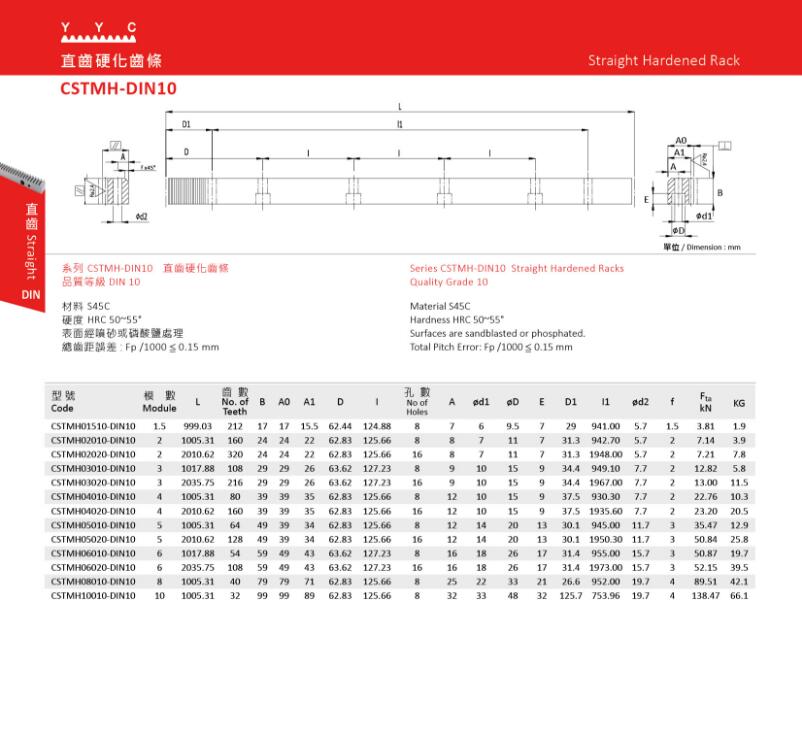

系列 CSTMH-DIN10 直齒硬化齒條

材料 S45C

硬度 HRC 50~55°

表面經噴砂或磷酸鹽處理

總齒距誤差: Fp /1000 ≦ 0.15 mm

型號與規格：

CSTMH01510-DIN10 17*17*999.03L*M1.5

CSTMH02010-DIN10 24*24*1005.31L*M2

CSTMH02020-DIN10 24*24*2010.62L*M2

CSTMH03010-DIN10 29*29*1017.88L*M3

CSTMH03020-DIN10 29*29*2035.75L*M3

CSTMH04010-DIN10 39*39*1005.31L*M4

CSTMH04020-DIN10 39*39*2010.62L*M4

CSTMH05010-DIN10 49*39*1005.31L*M5

CSTMH05020-DIN10 49*39*2010.62L*M5

CSTMH06010-DIN10 59*49*1017.88L*M6

CSTMH06020-DIN10 59*49*2035.75L*M6

CSTMH08010-DIN10 79*79*1005.31L*M8

CSTMH10010-DIN10 99*99*1005.31L*M10[/h3]
